product description:

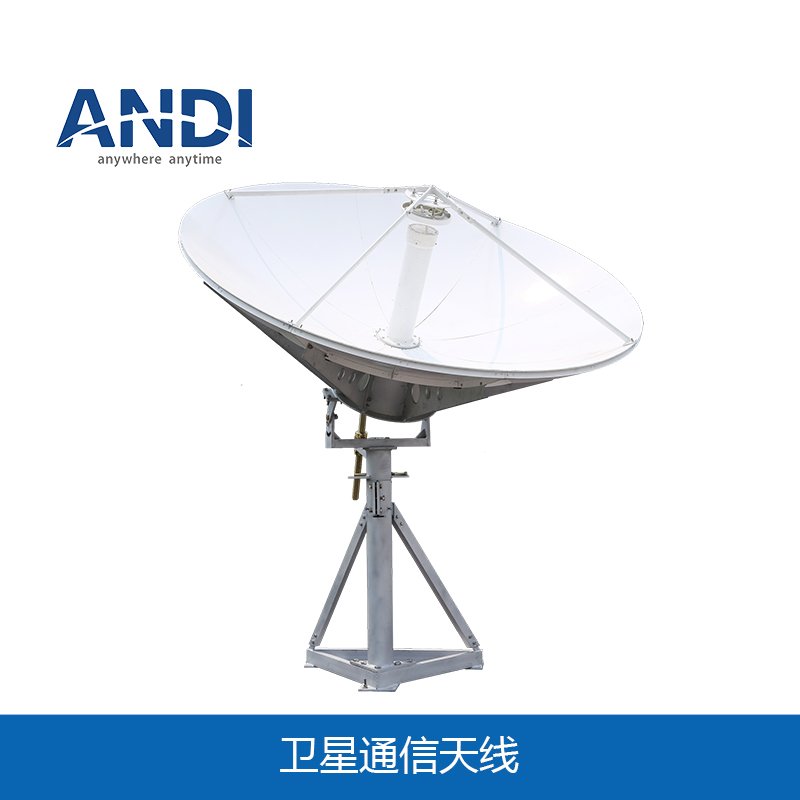

Antenna caliber 3.0m ring focus antenna is a new communication station small caliber antenna optimized and designed by Sichuan Andy Technology Industrial Co., Ltd. The antenna adopts double-shape design on the main and auxiliary surfaces, adopts corrugated horn feed source processed by CNC lathe, high-precision and high-strength main and auxiliary surface structure, excellent antenna performance, interchangeable components of the antenna, high precision, convenient installation, simple operation, mechanical High strength, strong wind resistance, and high reloading accuracy. Column or tripod mounts are available. The performance of the antenna meets the requirements of CCIR-580 for satellite earth station antennas. It is composed of main reflector, auxiliary surface support, radial plate, central body, feed system, antenna mount (column type, tripod), etc. It can provide manual tracking and electric tracking methods, and can provide electric polarization device and support type Feed source, or customized according to customer requirements.

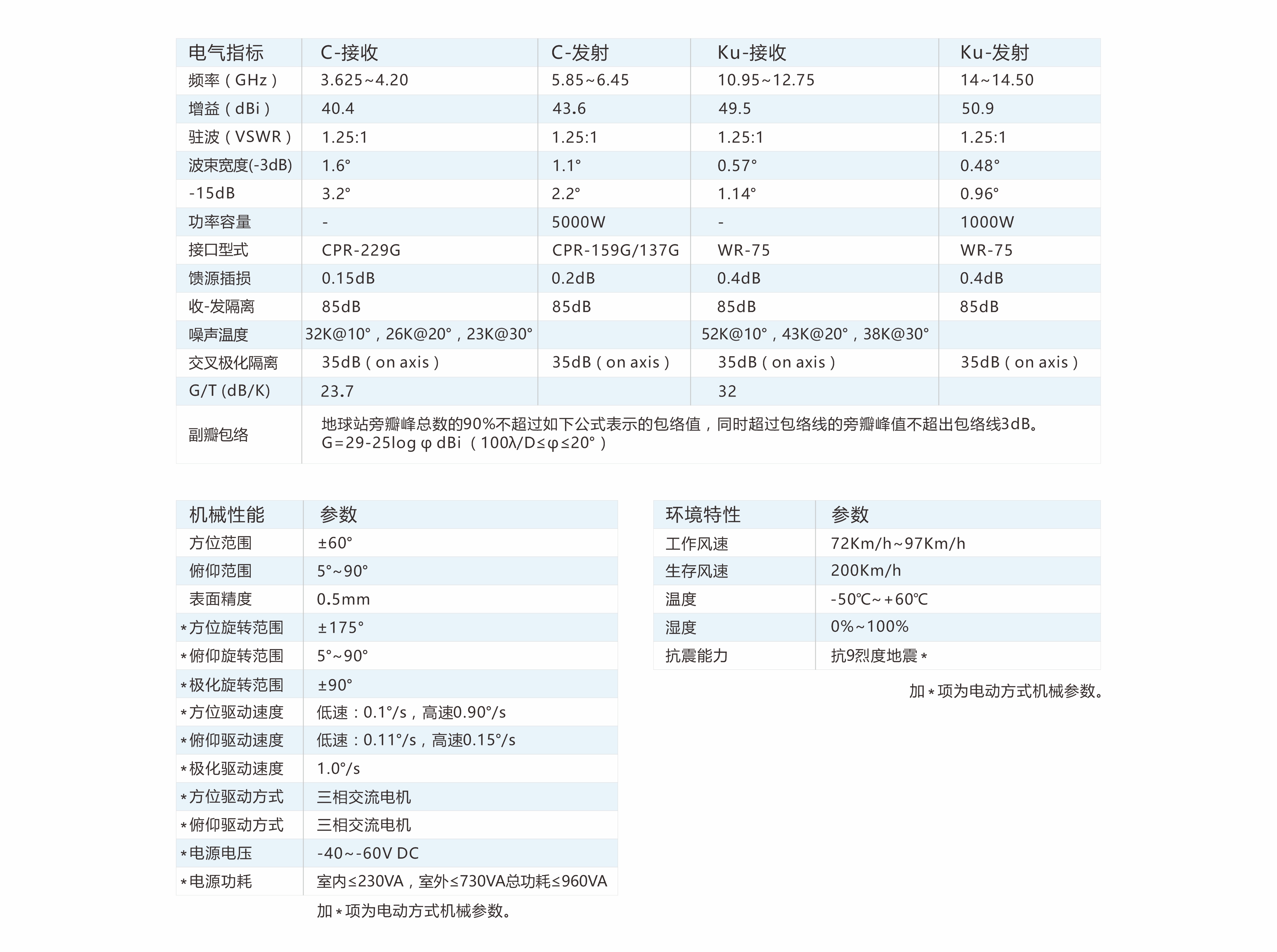

Technical indicators:
