product description:

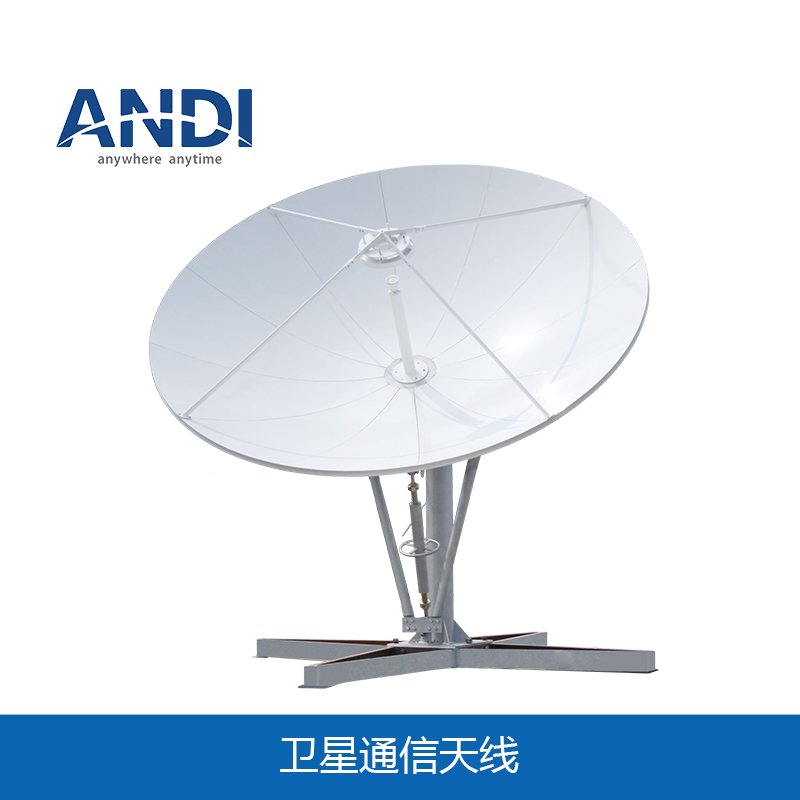

The antenna caliber is 3.7m ring-focus antenna produced by Sichuan Andy Technology Industrial Co., Ltd. The mount is AE-type truss mount. The antenna adopts the double-shaped design of the main and secondary surfaces, high-performance feed source, high-precision and high-strength main and secondary surface structure , the antenna performance is excellent. The antenna pedestal adopts a combination structure of columns and tripods. The antenna is convenient and stable for star-to-star operation, and has strong wind resistance. The components of the antenna are interchangeable, which provides convenience for users to install and maintain. The performance of the antenna meets the requirements of CCIR-580 for satellite earth station antennas.

It is composed of main reflector, sub-reflector and sub-surface support, radiating beam, center body, feed source system, antenna mount, etc. It can provide manual tracking mode or electric tracking mode, and can provide electric polarization device and self-supporting feeder Source, or customized according to customer requirements.

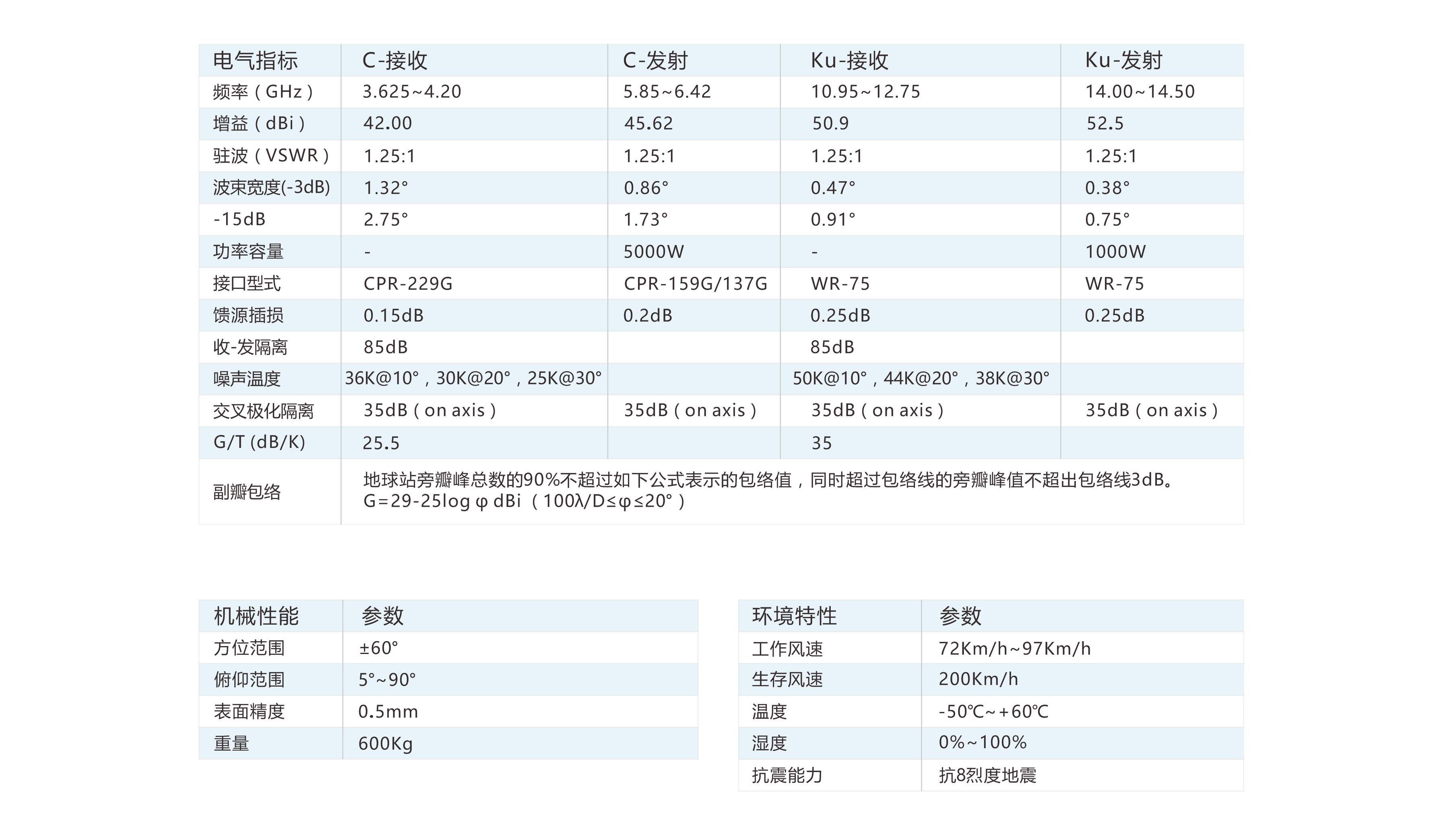

Technical indicators:
