product description:

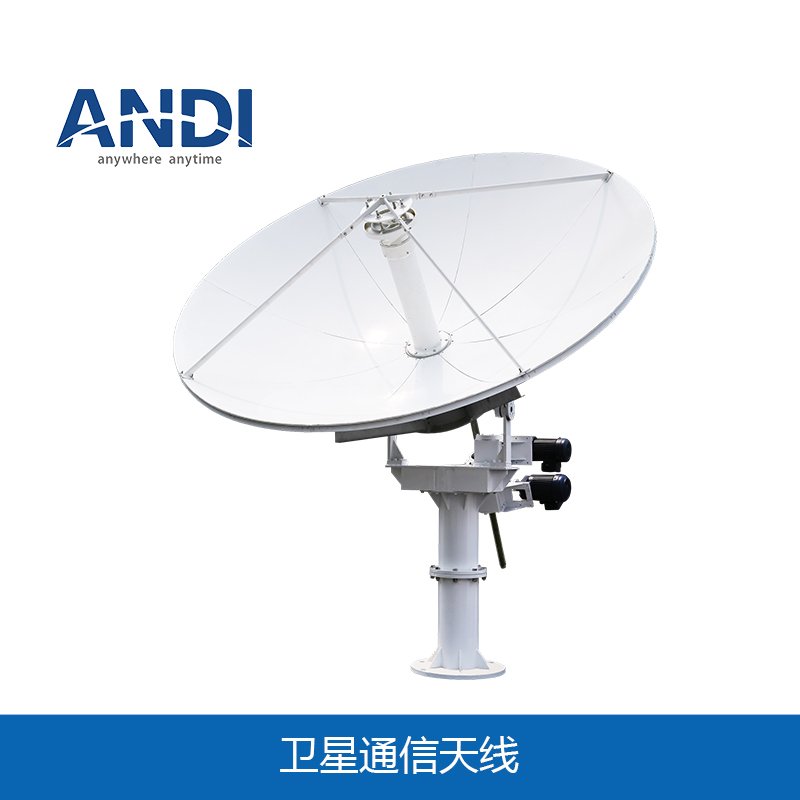

The 2.4-meter ring-focus antenna is a new communication station small-aperture antenna whose electrical performance has reached an advanced level through optimized design, using ring-focus technology, corrugated horn feed, etc., by Sichuan Andy Technology Industrial Co., Ltd., supporting C/Ku/ Ka (custom) band.

The main reflector of the antenna is composed of eight high-precision fan-shaped panels that are stretched and formed by aluminum plates . The secondary reflector is made of cast aluminum parts and manufactured by CNC lathe. The mount is a stable and reliable single-column mount structure. It has the characteristics of novel design, high precision, beautiful appearance, convenient installation , simple operation, high mechanical strength, strong wind resistance, and high reassembly accuracy. The antenna is composed of main reflector, sub-reflector and sub-surface support, web, central body, feed system, antenna mount, etc. Manual and automatic star alignment are optional.

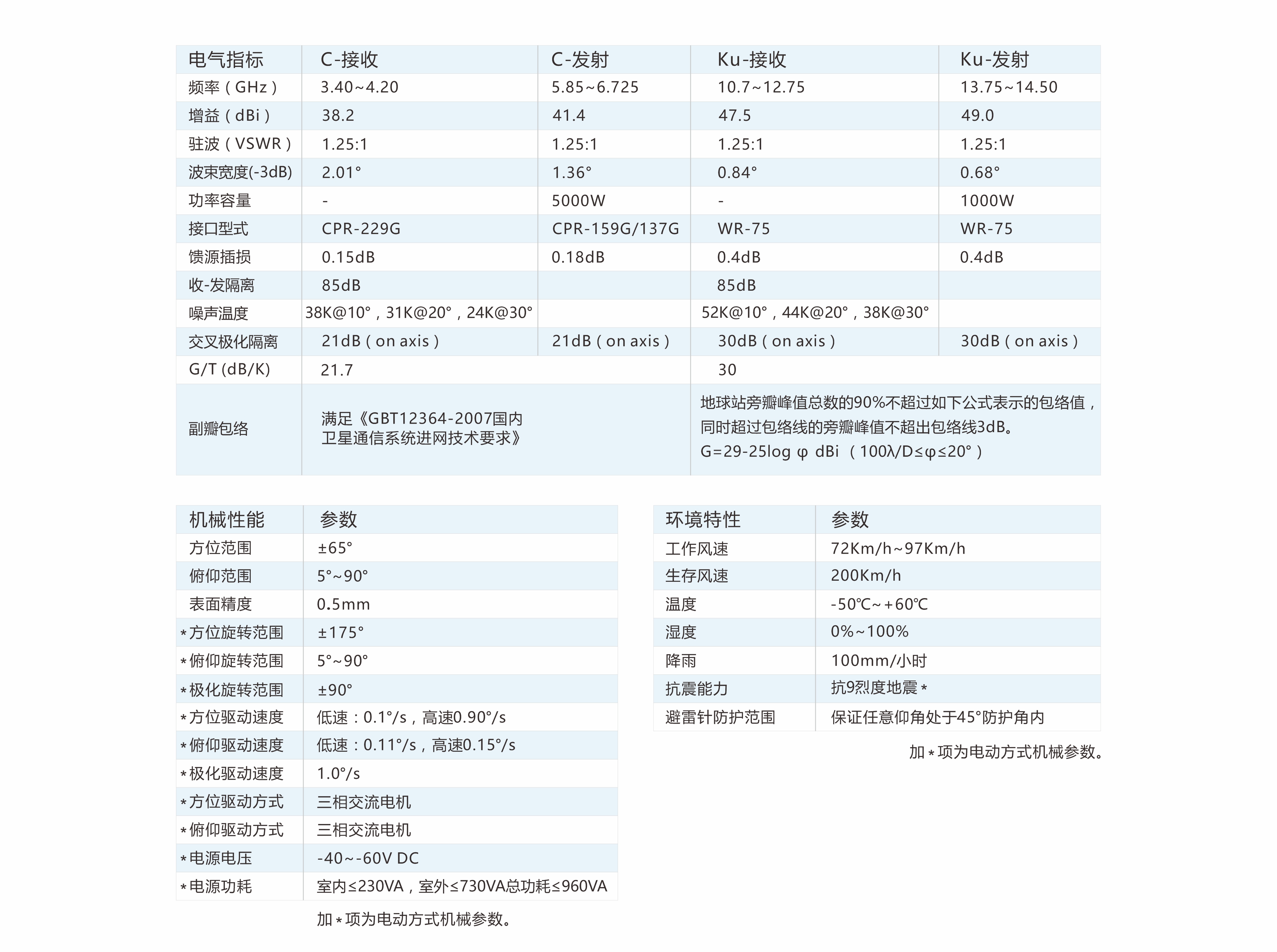

Technical indicators:
