product description:

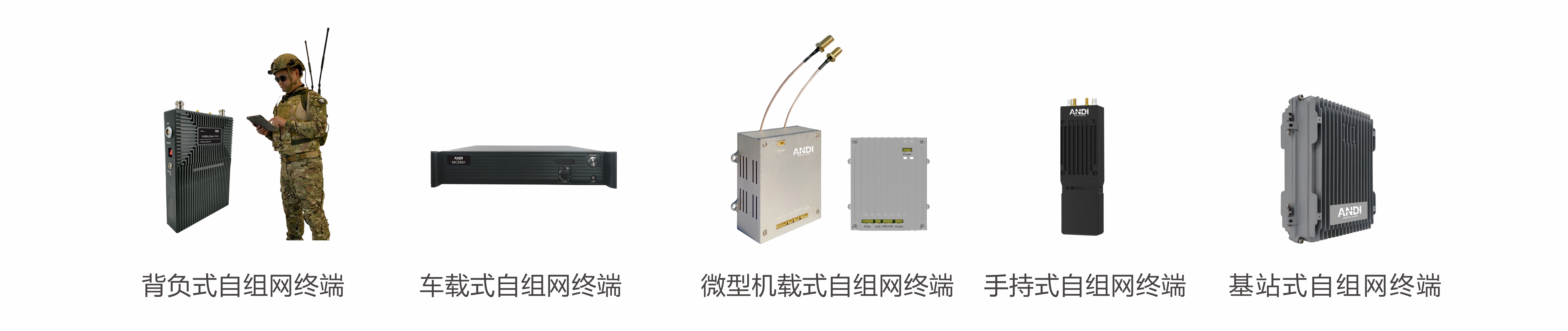

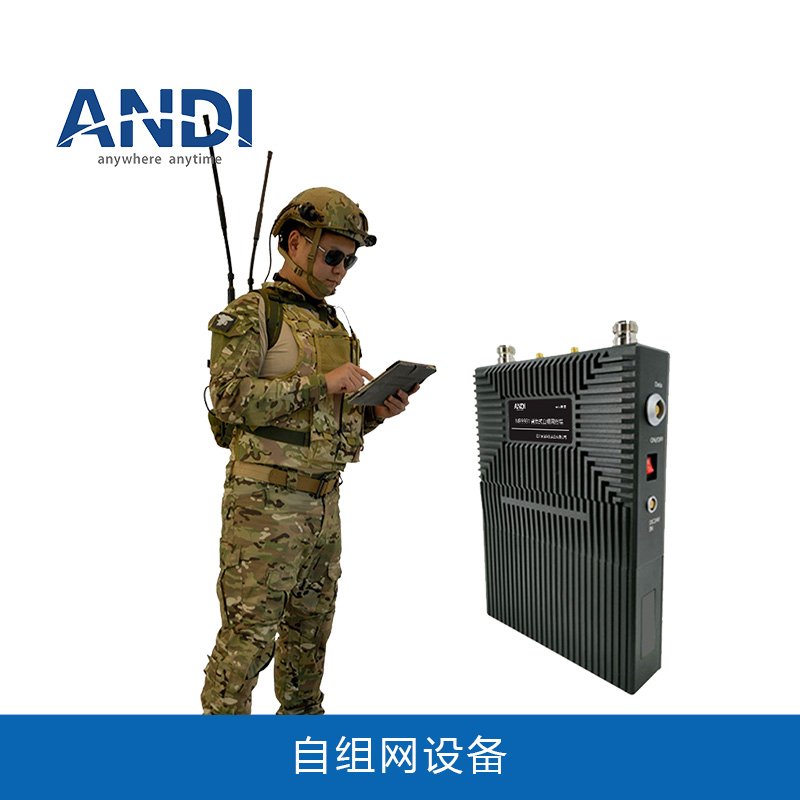

Backpack ad hoc network terminal : small in size, light in weight, equipped with a high-capacity detachable battery, which is convenient for individual soldiers to carry on their backs and fully frees their hands. Fast network access and automatic multi-hop relay can provide multimedia communication services such as voice group call, video return, and relay transmission for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. It also has Beidou positioning function, and also supports wifi coverage, and can cooperate with wifi-enabled smart terminals for various communications.
The system adopts the same frequency networking, multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology. It can provide wireless broadband communication for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, emergency rescue, daily patrol and other "peace and emergency" tasks. The single-hop transmission distance can reach more than 2km in the open environment on the ground, 300~1000m in the blocked environment (depending on the blocked environment), and more than 20km from the air to the ground.

Vehicle-mounted ad-hoc network terminal: for the standard 2U rack structure of the vehicle system, it is mainly used for modified special communication command vehicles and rack-mounted installations in large mobile command vehicles. The equipment has the communication function of self-organizing network, which can form a communication network with its own fleet, and can also communicate with backpack equipment, handheld devices, air carriers (helicopters or drones) and surrounding base stations to quickly establish link communication.
All nodes in line-of-sight or non-line-of-sight environments do not need a central gateway, and all nodes are equal in status, that is, they can be used as terminal nodes, relay nodes or central nodes, and can quickly establish a wireless communication network without relying on wired communication lines. It is especially suitable for the application of central communication command vehicles and mobile vehicle marshalling. It can play a strong role in emergency response, anti-terrorism and riot control, emergency rescue and disaster relief, large-scale event support, temporary deployment and control, and relay transmission. The transmission distance can reach more than 20km in the open environment on the ground, 1-5km in the blocked environment (depending on the blocked environment), and more than 50km from the air to the ground.

Micro airborne ad-hoc network terminal: small in size, light in weight, can be installed in front or reverse, easy to install, especially suitable for application scenarios with lightweight networking requirements such as drones. Fast network access, automatic multi-hop relay, and a three-dimensional interconnected and interoperable network can be quickly established with handheld individual systems, vehicle systems, and surrounding ad hoc network base stations to achieve efficient collaboration. It also has Beidou positioning function, and also supports wifi coverage, and can cooperate with wifi-enabled smart terminals for various communications.
The system adopts the same frequency networking, multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology. It can provide wireless broadband communication for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, emergency rescue, daily patrol and other "peace and emergency" tasks. The single-hop transmission distance can reach more than 2km in the open environment on the ground, 300~500m in the blocked environment (depending on the blocked environment), and more than 20km from the air to the ground.

Handheld mesh ad hoc network transmission equipment: small in size, light in weight, equipped with a detachable lithium battery, which can be hand-held or carried on the back. Fast network access and automatic multi-hop relay can provide multimedia communication services such as voice group call, video return, and relay transmission for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. It also has the Beidou positioning function and also supports wifi coverage, and can cooperate with smart terminals with wifi functions for various communications.
The system adopts the same frequency networking, multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology. It can provide wireless broadband communication for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, emergency rescue, daily patrol and other "peace and emergency" tasks. The single-hop transmission distance can reach more than 2km in the open environment on the ground, 300~500m in the blocked environment (depending on the blocked environment), and more than 20km from the air to the ground.

Base station ad hoc network terminal: It can be fixedly installed on poles, walls and brackets. It is mainly deployed in outdoor fixed points and ship-mounted mobile points. It is waterproof and dustproof, easy to install and easy to operate. The transmission power of the equipment is large, and the communication distance is long. It integrates data transmission and reception, dynamic routing, relay forwarding, and other forms of node equipment to quickly form a wireless multi-hop broadband network, providing users with voice, data, video and other multimedia business wireless transmission services. .
All nodes are in the line-of-sight or non-line-of-sight environment, without the need for a central gateway, all nodes are equal, and do not rely on wired communication lines, and can quickly establish a wireless communication network. It is especially suitable for applications such as long-distance coverage link communication, information aggregation and return, regional coverage support, commanding height enhanced coverage, and relay relay transmission nodes. It can play a strong advantage in subsequent transmission. The single-hop transmission distance can reach more than 20km in the open environment on the ground, 1-5km in the blocked environment (depending on the blocked environment), and more than 50km from the air to the ground.

Application scenario:

For detailed parameters, please scan the official WeChat query
